| Chain No. |
Chain No. |
Pitch | Width between inner plates |
Roller diameter |
Plate technical data |
Pin Technique data | Min tensile strength |
Average tensile strength |
Approx unit weight |
Transverse pitch |
|||
| Chain plate thickness | Chain width | Pin diameter | Pin length | Pin length | |||||||||
| P (mm) |
b1 (mm) |
d1 (mm) |
T (mm) |
h2 (mm) |
d2 (mm) |
L (mm) |
Lc (mm) |
Q (KN) |
Q0 (KN) |
q≈ (Kgm) |
Pt (mm) |
||
| 04C-3 | 25R-3 | 6.35 | 3.18 | 3.30 | 0.80 | 6.00 | 2.31 | 21.00 | 21.50 | 10.50 | 12.60 | 0.44 | 6.40 |
| 06C-3 | 35R-3 | 9.53 | 4.77 | 5.08 | 1.30 | 9.00 | 3.58 | 32.70 | 33.50 | 23.70 | 28.60 | 1.05 | 10.13 |
| 08A-3 | 40R-3 | 12.70 | 7.85 | 7.92 | 1.50 | 12.00 | 3.96 | 45.40 | 46.60 | 42.30 | 50.00 | 1.90 | 14.38 |
| 10A-3 | 50R-3 | 15.875 | 9.40 | 10.16 | 2.00 | 15.09 | 5.08 | 57.00 | 58.50 | 66.60 | 77.80 | 3.09 | 18.11 |
| 12A-3 | 60R-3 | 19.05 | 12.57 | 11.91 | 2.40 | 18.00 | 5.94 | 71.50 | 73.30 | 95.40 | 111.10 | 4.54 | 22.78 |
| 16A-3 | 80R-3 | 25.40 | 15.75 | 15.88 | 3.20 | 24.00 | 7.92 | 91.70 | 93.60 | 170.10 | 198.40 | 7.89 | 29.29 |
| 20A-3 | 100R-3 | 31.75 | 18.90 | 19.05 | 4.00 | 30.00 | 9.53 | 112.20 | 116.30 | 265.50 | 309.60 | 11.77 | 35.76 |
| 24A-3 | 120R-3 | 38.10 | 25.22 | 22.23 | 4.80 | 35.70 | 11.10 | 141.40 | 145.20 | 381.00 | 437.20 | 17.53 | 45.44 |
| 28A-3 | 140R-3 | 44.45 | 25.22 | 25.40 | 5.60 | 41.00 | 12.70 | 152.20 | 156.80 | 517.20 | 593.30 | 22.20 | 48.87 |
| 32A-3 | 160R-3 | 50.80 | 31.55 | 28.58 | 6.40 | 47.80 | 14.27 | 181.80 | 186.60 | 680.40 | 780.60 | 30.02 | 58.55 |
| 40A-3 | 200R-3 | 63.50 | 37.85 | 39.68 | 8.00 | 60.00 | 19.85 | 223.50 | 230.40 | 1061.40 | 1217.80 | 49.03 | 71.55 |
| 48A-3 | 240R-3 | 76.20 | 47.35 | 47.63 | 9.50 | 72.39 | 23.81 | 271.30 | 278.60 | 1530.90 | 1756.20 | 71.60 | 87.83 |

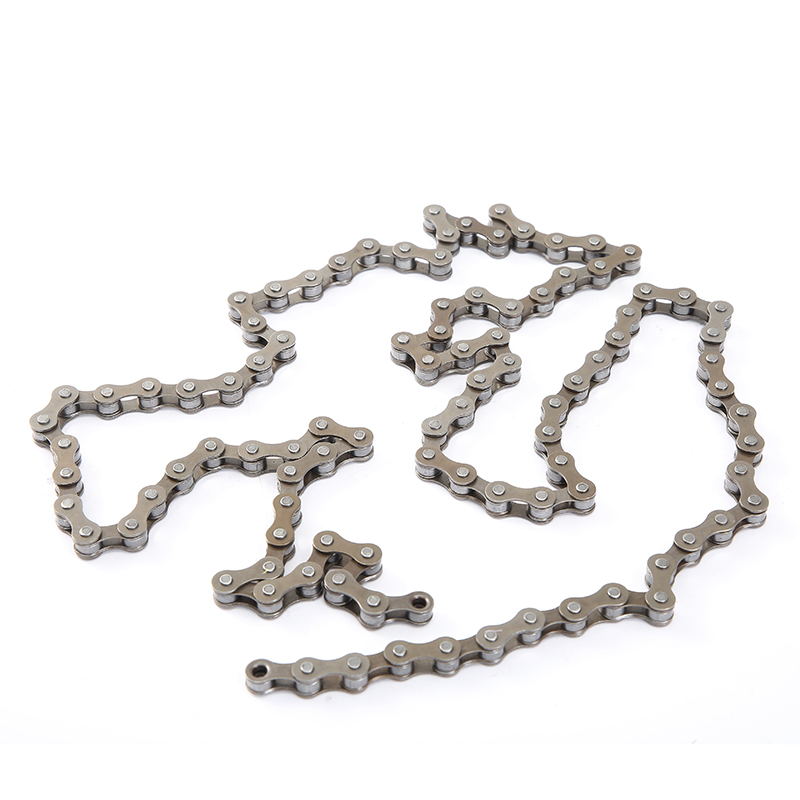

.jpg?imageView2/2/format/jp2 "Single Speed Bicycle Chain")
