OEM Double pitch conveyor chain with extended pin

Product Series

0_0000_8q9a5650
0_0001_8q9a5628
0_0002_8q9a5627
0_0003_8q9a5626
0_0004_8q9a5622
0_0005_8q9a5621
0_0006_8q9a5617
0_0000_8q9a5769
0_0001_8q9a5764
0_0002_8q9a5763
0_0003_8q9a5761
0_0004_8q9a5758
0_0005_8q9a5757
0_0006_8q9a5756

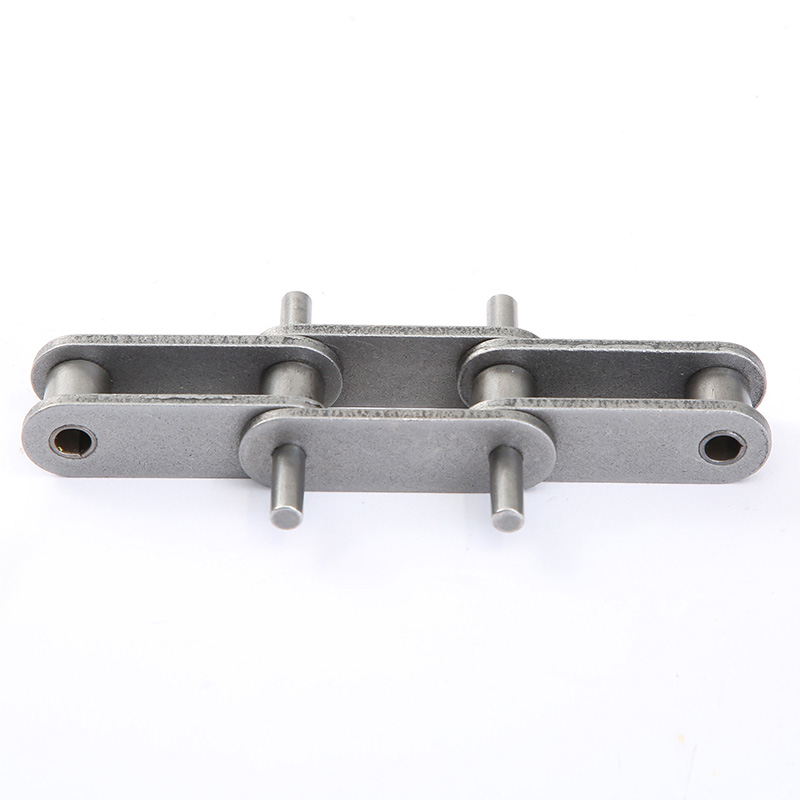

Double pitch conveyor chain with extended pin

Get a Quote
PREV：Conveyor chains with special extended pins
NEXT：Large double pitch roller chain customization
  • Description
  • Contact Us
  • Chain No. Chain No. p b1 d2 L3 L Lc
    (mm) (mm) (mm) (mm) (mm) (mm)
    C208A C2040 25.04  7.85  3.96  9.50  25.10  26.20
    C208AL C2042 25.04  7.85  3.96  9.50  25.10  26.20
    C210A C2050 31.75  9.40  5.08  11.90  31.30  33.10
    C210AL C2052 31.75  9.40  5.08  11.90  31.30  33.10
    C212A c2060 38.10  12.57  5.94  14.30  38.60  40.60
    C212AL C2062 38.10  12.57  5.94  14.30  38.60  40.60
    C212AH C2060H 38.10  12.57  5.94  14.30  42.00  43.80
    C212AHL c2062H 38.10  12.57  5.94  14.30  42.00  43.80
    C216A C2080 50.80  15.75  7.92  19.10  50.30  53.30
    C216AL C2082 50.80  15.75  7.92  19.10  50.30  53.30
    C216AH C2080H 50.80  15.75  7.92  19.10  53.50  55.00
    C216AHL C2082H 50.80  15.75  7.92  19.10  53.50  55.00
    C220A C2100 63.50  18.90  9.53  23.80  61.80  66.10
    C220AL C2102 63.50  18.90  9.53  23.80  61.80  66.10
    C220AH C2100H 63.50  18.90  9.53  23.80  65.00  68.30
    C220AHL C2102H 63.50  18.90  9.53  23.80  65.00  68.30
    C224AH C2120H 76.20  25.22  11.10  28.60  79.60  83.60
    C224AHL C2122H 76.20  25.22  11.10  28.60  79.60  83.60
    C232AH C2160H 101.60  31.75  14.27  38.10  103.00  107.80
    C232AHL C2162H 101.60  31.75  14.27  38.10  103.00  107.80

Jinhua Haoqiang Chain Co., Ltd. was founded in 2006 and is located in Tonglu Industrial Park, Wuyi County, Zhejiang Province. It is professional China Double pitch conveyor chain with extended pin suppliers integrating R&D, manufacturing and sales. We also OEM/ODM and wholesale Double pitch conveyor chain with extended pin in bulk. Our products are mainly exported to dozens of countries such as the United States, Germany, Japan, Spain, Italy, the United Kingdom, South Korea, Australia, and Canada.
